Industrial Dust Collectors

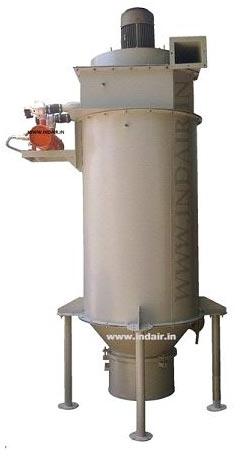

In bag house dust collectors, the dust filled air stream passes through fabric bags that filter the dust particles. With the help of sequential timers and solenoid valves a high-pressure cleaning air most know as pulse jet is blown periodically in the opposite direction of the dust-laden stream through the filter media, to clean the dust sediment layer that would form over the filter surface. This system known as a online pulse jet system. In these dust collectors, cleaning will be done continuously without interrupting the process.

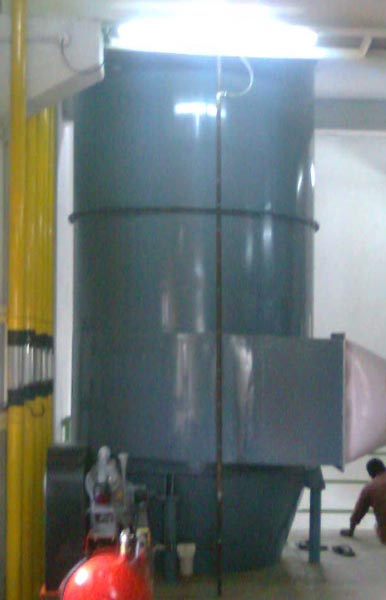

Cyclones or Cyclone Dust Collector use cyclonic action to separate dust particles from the gas stream. In a typical cyclone, the dust gas stream enters at an angle and is spun rapidly. The centrifugal force created by the circular flow throws the dust particles toward the wall of the cyclone. The arrangements are made such that dust particles do not escape the chamber. After striking the wall, these particles fall into a hopper located underneath.

They create a dual vortex to separate coarse from fine dust. The main vortex spirals downward and carries most of the coarser dust particles. The inner vortex, created near the bottom of the cyclone, spirals upward and carries finer dust particles.

Multiple-cyclone separators consist of a number of small-diameter cyclones, operating in parallel and having a common gas inlet and outlet. Multiple-cyclone separators are more efficient than single cyclones because they are longer and smaller in diameter. The longer length provides longer residence time while the smaller diameter creates greater centrifugal force.

The single-chamber cyclone is more energy-efficient and economical than other separators.

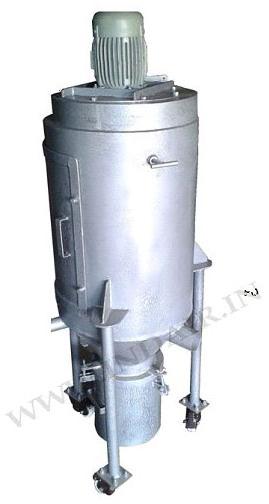

We manufacture a wide range of Portable Dust Collector systems. Our dust extraction solutions deliver consistent, unbeatable reliability for a wide range of applications and industries. For cost effectiveness we manufacture customized units to suit exactly the application. We can provide customized ducting solutions along with our dust collectors for your specific dust collection requirements.

Applications
A few of the many applications for this product include :

• Dust collection for woodworking saws, sanders, jointers and planers.
• Dust collection for grinding and buffing machines used in metalworking.
• Dust collection for flour mills.
• For portable or stationary applications.
• For single work stations up to multiple stations.

Indair bag house filters and Wet Scrubber can be used for a variety of applications from bin venting and product reclamation, while providing dependable, long life-cycle, maintenance free performance. These are some of the most efficient and cost effective dust collector models for capture of erosive and non erosive, light and heavy dust particles.

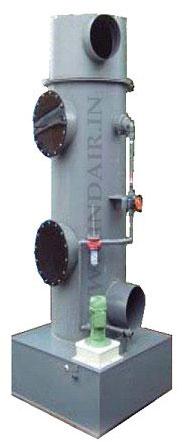

When the pollutants are smoke, fume or volatile in nature we use wet scrubber to clean the impure air by scrubbing it with water or necessary solvent. Widely used for flue gas treatments. The design and construction of the scrubber varies with the application and nature of fume.

In typical wet scrubber, the polluted gas stream is brought into contact with the scrubbing liquid, by spraying it with the liquid, by forcing it through a pool of liquid, or by some other contact method, so as to remove the pollutants. Special flue gas affinity packing layers are arranged to absorb the impurities. The versatility of wet scrubbers allows them to be built in numerous configurations, all designed to provide good contact between the liquid and polluted gas stream.

The design of wet scrubbers or any air pollution control device depends on the industrial process conditions and the nature of the air pollutants involved. Inlet gas characteristics and dust properties (if particles are present) are of primary importance.

Some advantages of wet scrubbers over these devices are as follows :

• Wet scrubbers have the ability to handle high temperatures and moisture.
• In wet scrubbers, flue gases are cooled, resulting in smaller overall size of equipment.
• Wet scrubbers can remove both gases and particulate matter.
• Wet scrubbers can neutralize corrosive gases.

A few of the many industries where this product employed :

• Hallmarking centers
• Foundries and steel processing plants.
• Chemical industries
• Galvanizing plants
• Pharmaceuticals plant

Indair bag house filters and Dust Collectors can be used for a variety of applications from bin venting and product reclamation, while providing dependable, long life-cycle, maintenance free performance. These are some of the most efficient and cost effective dust collector models for capture of erosive and non erosive, light and heavy dust particles.
